Bobbins For Domestic Singer Sewing Machines

There are several Singer bobbins which look very similar, but which have subtle differences that are important to the correct operation of the machine. It is important to ensure that you have the correct bobbin.

You should not use metal bobbins in machines designed for plastic, or vice versa, you should not use plastic bobbins in machines designed for metal ones.

Singer Bobbin Types

Class Simanco # Metal/Plastic Notes Photo

9W Bagel 202053 Metal   9W bobbin
12 O.S. 49 Metal   12K bobbin
28 V.S. 8228 Metal   12K bobbin
15 Long Beak 2073 Metal   15 bobbin
15 2518 Metal   15 bobbin
15 81348 Plastic   15P bobbin
15J 85128 Plastic As 15 with thinned domed edges 15J bobbin
66 32522 Metal   66 bobbin
66P 172222 Plastic Same size as 66 66P bobbin
66P Apollo 172336 Plastic Same size as 66 66P bobbin
221 45785 Metal 9W-7, 301, 221, 222K 221 bobbin
20U 55623 Metal   20U bobbin
Touch N'Sew 163124 Plastic   T&S bobbin
Centaur 181551 Plastic   Futura bobbin
Centaur II 312956 Plastic   12K bobbin
Sure Fit   Plastic   Surefit bobbin
Class M 18034 Metal Industrial 12K bobbin
400W 270010 Metal   12K bobbin
Magic Tailor 32438 Plastic   12K bobbin

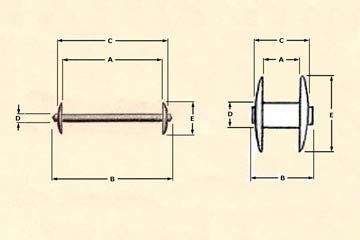

Outline Dimensions

Bobbin Sizes

Bobbin Dimensions

Bobbin Class Simanco # A B C D E

12   1-1/16" 1-3/8" 1-7/32" 3/32" 19/64"
28 8228 1-1/8" 1-11/32" 1-7/32" 1/8" 3/8"
15 2518 3/8" 15/32" 27/64" 5/16" 13/16"
66 32522 5/16" 27/64" 13/32" 5/16" 13/16"
Apollo 172336 9/32" 27/64" 27/64" 21/64" 13/16"
221 45785 1/4" 19/64" 19/64" 5/16" 7/8"
20U 55623 5/16" 23/64" 23/64" 19/64" 53/64"


Bobbin Selection By Model

The following details are believed to be correct, and are provided in good faith, but you should always check the information for yourself before buying new bobbins, or using a type you have not used in the machine before.

Model Bobbin Class Metal/Plastic Notes

9W-1 Bagel Metal
9W-7 221 Metal
12 12 Metal
13 12 Metal
15 15 Metal
20U 20U Metal
28 28 Metal
31-15 15 Metal
66 66 Metal
95 Lock Stitch Metal
96 Lock Stitch Metal
101 66 Metal
103 Lock Stitch Metal
115 20U Metal
118 15 Plastic Plastic
121 M Metal
167 Capri Apollo Plastic
132Q 15 Plastic Plastic
140Q 15 Plastic Plastic
185 66 Metal
188 20U Metal
191 20U Metal
192 Spartan 66 Metal
195 Lock Stitch Metal
196 Lock Stitch Metal
201 66 Metal
206 20U Metal
221 221 Metal
222 221 Metal
237 15 Plastic Plastic
239 15 Plastic Plastic
241 Lock Stitch Metal
245 Lock Stitch Metal
247 66 Metal
247AP Apollo Plastic
251 20U Metal
258M Apollo Plastic
281 20U Metal
288 66 Metal
290 Touch N'Sew Plastic
301 221 Metal
306 20U Metal
306 20U Metal
319 20U Metal
320 20U Metal
327 Apollo Plastic
328 Apollo Plastic
329 66 Metal
331 15 Metal
353 Apollo Plastic
348 Apollo Plastic
354 Apollo Plastic
360 Apollo Plastic
362 Apollo Plastic
367 Apollo Plastic
368 Apollo Plastic
369 M Metal
401A Apollo Plastic
403A Apollo Plastic
404 Apollo Plastic
413 Apollo Plastic
413K13 Apollo Plastic
416 Apollo Plastic
418 Apollo Plastic
457 Stylist Apollo Plastic
466 Apollo Plastic
476 Apollo Plastic
477 Apollo Plastic
478 Apollo Plastic
491 20U Metal
500A Apollo Plastic
502 Apollo Plastic
503A Apollo Plastic
507 Apollo Plastic
510 Apollo Plastic
513 Apollo Plastic
514 Apollo Plastic
518 Apollo Plastic
522 66 Metal
527 66 Metal
530 Apollo Plastic
531 M Metal
533 Apollo Plastic
534 Apollo Plastic
538 Apollo Plastic
544 Apollo Plastic
560 Apollo Plastic
591 20U Metal
600 Touch N'Sew Plastic
603 Touch N'Sew Plastic
604 Touch N'Sew Plastic
620 Touch N'Sew Plastic
625 Touch N'Sew Plastic
626 Touch N'Sew Plastic
628 Touch N'Sew Plastic
629 Touch N'Sew Plastic
630 Touch N'Sew Plastic
635 Touch N'Sew Plastic
638 Touch N'Sew Plastic
639 Touch N'Sew Plastic
640 Touch N'Sew Plastic
645 Touch N'Sew Plastic
649 Touch N'Sew Plastic
714 66 Metal
717 66 Metal
719 66 Metal
720 Touch N'Sew Plastic
724 Apollo Plastic
734 66 Metal
737 Touch N'Sew Plastic
750 Touch N'Sew Plastic
755 Touch N'Sew Plastic
756 Touch N'Sew Plastic
758 Touch N'Sew Plastic
770 Touch N'Sew Plastic
774 66 Metal
775 Touch N'Sew Plastic
776 66 Metal
778 Touch N'Sew Plastic
814 66 Metal
830 Apollo Plastic
834 66 Metal
844 Apollo Plastic
900 Futura Plastic
920 Futura Plastic
925 Futura Plastic
935U Apollo Plastic
1021 Apollo Plastic
1022 Apollo Plastic
1030 Futura Plastic
1036 Futura Plastic
1040 Touch N'Sew Plastic
1060 Touch N'Sew Plastic
1105 15 Metal
1107 15 Metal
1116 15 Metal
1120 15 Metal
1125 15 Metal
1130 15 Plastic Plastic
1200 Futura Plastic
1247 Apollo Plastic
1263 Apollo Plastic
1280 Apollo Plastic
1288 Apollo Plastic
1409 Promise 15 Plastic Plastic
1482 Apollo Plastic
1485 Apollo Plastic
1486 Apollo Plastic
1488 Apollo Plastic
1490 Apollo Plastic
1492 Apollo Plastic
1500 15 Plastic Plastic
1507WC 15 Plastic Plastic
1530 15 Metal
1802 Apollo Plastic
1803 Apollo Plastic
1812 Apollo Plastic
1852 Apollo Plastic
1853 Apollo Plastic
1862 Apollo Plastic
1872 Apollo Plastic
1873 Apollo Plastic
2000 Futura Plastic
2001 Futura Plastic
2005 Futura Plastic
2010 Superb 15 Metal
2102 Apollo Plastic
2105 Apollo Plastic
2106 Apollo Plastic
2108 Apollo Plastic
2110 Apollo Plastic
2112 Apollo Plastic
2114 Apollo Plastic
2118 Apollo Plastic
2210 Apollo Plastic
2250 15 Plastic Plastic
2263 Simple 15 Plastic Plastic
2273 Esteem 15 Plastic Plastic
3323 Talent 15 Plastic Plastic
2302 Apollo Plastic
2303 Apollo Plastic
2304 Apollo Plastic
2315 Apollo Plastic
2330 Apollo Plastic
2404 Apollo Plastic
2430 Apollo Plastic
2240 Apollo Plastic
2250 Tradition 15 Plastic Plastic
2259 Tradition 15 Plastic Plastic
2502 Apollo Plastic
2503 Apollo Plastic
2504 Apollo Plastic
2515 Apollo Plastic
2517 Apollo Plastic
2528 15 Metal
2530 Apollo Plastic
2638 15 Plastic Plastic
2639 15J Plastic
2662 15J Plastic
2732 Apollo Plastic
2950 Apollo Plastic
3001 15 Metal
3002 15 Metal
3003 15 Metal
3004 15 Metal
3005 15 Metal
3011 15 Metal
3012 15 Metal
3013 15 Metal
3014 15 Metal
3101 Apollo Plastic
3102 Apollo Plastic
3102 Apollo Plastic
3105 Apollo Plastic
3223 Simple 15 Plastic Plastic
3231 Simple 15 Plastic Plastic
3232 Simple 15 Plastic Plastic
3314 Apollo Plastic
3317 Apollo Plastic
3321 Talent 15 Plastic Plastic
3323 Talent 15 Plastic Plastic
3343 Apollo Plastic
3709 15 Plastic Plastic
3722 15 Plastic Plastic
3810 15 Plastic Plastic
3820 15 Plastic Plastic
3825 15 Plastic Plastic
3962 15J Plastic
4001 15 Metal
4002 15 Metal
4005 15 Metal
4006 15 Metal
4009 15 Metal
4011 15 Metal
4012 15 Metal
4015 15 Metal
4016 15 Metal
4019 15 Metal
4022 15 Metal
4116 15J Plastic
4205 Inspiration Sure Fit Plastic
4206 Inspiration Sure Fit Plastic
4210 Inspiration Sure Fit Plastic
4212 Inspiration Sure Fit Plastic
4220 Inspiration Sure Fit Plastic
4228 Inspiration Sure Fit Plastic
4325 Apollo Plastic
4411 Heavy Duty 15 Plastic Plastic
4423 Heavy Duty 15 Plastic Plastic
4432 Heavy Duty 15 Plastic Plastic
4522 Apollo Plastic
4526 Apollo Plastic
4528 Apollo Plastic
4530 Apollo Plastic
4538 Apollo Plastic
4552 Apollo Plastic
4562 Apollo Plastic
4572 Apollo Plastic
4610 Apollo Plastic
4613 Centaur Plastic
4617 Centaur Plastic
4620 Apollo Plastic
4622 Apollo Plastic
4623 Centaur Plastic
4825 Apollo Plastic
4828 Apollo Plastic
4830 Apollo Plastic
5017 Apollo Plastic
5028 Apollo Plastic
5040 Apollo Plastic
5050 Apollo Plastic
5102 15 Metal
5107 15 Metal
5122 15 Metal
5123 15 Metal
5124 15 Metal
5107 15 Metal
5127 15 Metal
5400 Sew Mate 15 Plastic Plastic
5417 Apollo Plastic
5430 Apollo Plastic
5500 Fashion Mate 15 Metal
5511 Scholstic 15 Plastic Plastic
5522 15 Metal
5523 Scholstic 15 Plastic Plastic
5528 15 Metal
5532 Heavy Duty Sudio 15 Metal
5605 Apollo Plastic
5610 Apollo Plastic
5625 Stylist II 15J Plastic
5705 Apollo Plastic
5710 Apollo Plastic
5802 Apollo Plastic
5805 Apollo Plastic
5806 Apollo Plastic
5808 Apollo Plastic
5810 Apollo Plastic
5812 Apollo Plastic
5814 Apollo Plastic
5816 Apollo Plastic
5817 Apollo Plastic
5818 Apollo Plastic
5820 Apollo Plastic
5825 Apollo Plastic
5830 Apollo Plastic
5838 Apollo Plastic
5910 Apollo Plastic
5932 Apollo Plastic
6011 Apollo Plastic
6012 Apollo Plastic
6021 Apollo Plastic
6038 Apollo Plastic
6100 66 Metal
6102 Apollo Plastic
6104 Apollo Plastic
6105 Apollo Plastic
6106 Apollo Plastic
6110 Apollo Plastic
6120 Apollo Plastic
6130 Apollo Plastic
6136 Apollo Plastic
6146 Apollo Plastic
6152 Apollo Plastic
6156 Apollo Plastic
6160 15 Metal
6174 Apollo Plastic
6180 Brilliance 15 Metal
6184 Apollo Plastic
6199 Brilliance 15 Metal
6201 Apollo Plastic
6202 Apollo Plastic
6211 Apollo Plastic
6212 Apollo Plastic
6214 Apollo Plastic
6215 Apollo Plastic
6217 Apollo Plastic
6221 Apollo Plastic
6230 Centaur Plastic
6233 Apollo Plastic
6234 Centaur Plastic
6235 Centaur Plastic
6268 Centaur Plastic
6267 Centaur Plastic
6305 15 Plastic Plastic
6310 15 Plastic Plastic
6314 15 Plastic Plastic
6318 15 Plastic Plastic
6408 15 Plastic Plastic
6412 15 Plastic Plastic
6416 15 Plastic Plastic
6423 15 Plastic Plastic
6500 Apollo Plastic
6510 15 Plastic Plastic
6513 Apollo Plastic
6522 Apollo Plastic
6528 Apollo Plastic
6533 Apollo Plastic
6543 Apollo Plastic
6544 Apollo Plastic
6548 Apollo Plastic
6550 15 Plastic Plastic
6606 Apollo Plastic
6610 Sonata Apollo Plastic
6620 Apollo Plastic
6700 66 Metal
7004 Apollo Plastic
7005 Centaur Plastic
7011 Apollo Plastic
7015 Apollo Plastic
7021 Apollo Plastic
7025 Apollo Plastic
7028 Apollo Plastic
7033 Apollo Plastic
7043 Centaur Plastic
7060 Centaur Plastic
7100 66 Metal
7101 Apollo Plastic
7102 Apollo Plastic
7104 Apollo Plastic
7105 Apollo Plastic
7106 Apollo Plastic
7108 Apollo Plastic
7110 Apollo Plastic
7136 Apollo Plastic
7174 Apollo Plastic
7211 Apollo Plastic
7212 Apollo Plastic
7256 Fashion Mate 15J Plastic
7258 Stylist 15J Plastic
7285Q Patchwork 15J Plastic
7312 15 Plastic Plastic
7322 15 Plastic Plastic
7350 15 Plastic Plastic
7380 15 Plastic Plastic
7412 15J Plastic
7422 15J Plastic
7424 15J Plastic
7426 15J Plastic
7436 15J Plastic
7442 15J Plastic
7444 15J Plastic
7462 15J Plastic
7463 15J Plastic
7464 15J Plastic
7466 15J Plastic
7467 Confidence Stylist 15J Plastic
7468 15J Plastic
7469 Confidence Quilter 15J Plastic
7470 Confidence 15J Plastic
8002 Apollo Plastic
8007 Apollo Plastic
8019 Apollo Plastic
8100 66 Metal
8200 Apollo Plastic
8220 Apollo Plastic
8280 Scholstic 15 Plastic Plastic
8500 Apollo Plastic
8600 Apollo Plastic
8763 Curvy 15J Plastic
8770 Curvy 15J Plastic
8774 Apollo Plastic
8780 Curvy 15J Plastic
9005 Apollo Plastic
9008 Apollo Plastic
9010 Apollo Plastic
9015 Apollo Plastic
9018 Apollo Plastic
9020 Apollo Plastic
9022 Apollo Plastic
9027 Apollo Plastic
9030 Apollo Plastic
9032 Apollo Plastic
9034 Apollo Plastic
9044 Apollo Plastic
9100 Professional 15 Plastic Plastic
9110 Apollo Plastic
9113 Centaur Plastic
9117 Centaur Plastic
9124 Centaur Plastic
9130 Apollo Plastic
9133 Centaur Plastic
9137 Centaur Plastic
9143 Centaur Plastic
9210 Apollo Plastic
9217 Centaur Plastic
9224 Centaur Plastic
9240 Centaur Plastic
9323 Apollo Plastic
9334 Apollo Plastic
9408 Apollo Plastic
9410 Apollo Plastic
9416 Apollo Plastic
9420 Apollo Plastic
9423 Apollo Plastic
9430 Centaur Plastic
9432 Apollo Plastic
9444 Apollo Plastic
9500 Apollo Plastic
9502 Apollo Plastic
9505 Apollo Plastic
9518 Apollo Plastic
9600 Apollo Plastic
9602 Apollo Plastic
9605 Apollo Plastic
9606 Apollo Plastic
9608 Apollo Plastic
9610 Apollo Plastic
9612 Apollo Plastic
9614 Apollo Plastic
9618 Apollo Plastic
9802 - 9836 Apollo Plastic
9900 Centaur Plastic
9936 Apollo Plastic
9960 Quantum Stylist 15 Plastic
57817 Apollo Plastic
57820 Apollo Plastic
57825 Apollo Plastic
CE-100 15J Plastic
CE-150 Futura 15J Plastic
CE-200 15J Plastic
CE-250 Futura 15J Plastic
CE-350 15J Plastic
CM17 Apollo Plastic
DL17 Apollo Plastic
DSX 15 Plastic Plastic
DSX-II 15 Plastic Plastic
DX14C Apollo Plastic
GC500 Apollo Plastic
GC550 Apollo Plastic
GC590 Apollo Plastic
FM17 Apollo Plastic
FM22 Apollo Plastic
FQ4 Futura Quartet 15J Plastic
H74 15 Plastic Plastic
HD102 Apollo Plastic
HD105 Apollo Plastic
HD110 Apollo Plastic
M100 Magic Tailor Magic Tailor Plastic
67A Tiny Tailor Magic Tailor Plastic
New Athena 2009 15J Plastic
Pixie Plus 15 Metal
Quantum LE 15 Plastic Plastic
Quantum XL100 15 Plastic Plastic
Quantum XL150 15 Plastic Plastic
Quantum XL1000 15 Plastic Plastic
Quantum XL3400 15 Plastic Plastic
Quantum XL5000 Quantum Plastic
Quantum XL6000 Quantum Plastic
SEQS-6000 Futura Quartet 15J Plastic
SEQS-6700 Futura Quartet 15J Plastic
SES-2000 15J Plastic
Signature 15 Plastic Plastic
SM14 Apollo Plastic
XL-400 Futura 15J Plastic
XL-550 Futura 15J Plastic
