Singer 319K & 320 Sewing Machines

The Singer model 319K and 320K zigzag sewing machines were developed from the model 306 machine. The 320K was essentialy a free arm version of the 319K and is otherwise very similar.

The 319K was manufactured between 1956 and 1961, whilst the 320K was manufactured from 1958 until 1961.

Singer 319K

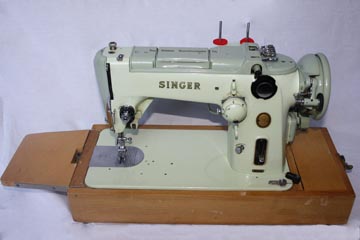

Model 319K



Singer 320K

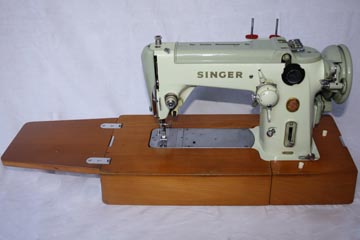

Model 320K



The 319K/320K machines use the industrial type 20U bobbins and Type 206x13 needles which have a shorter point than the classic 15x1 needles used on most other models. It is essential that 15x1 needle are NEVER used in these machines, or the bobbin case can be damaged. These machines were provide with several basic built in stitch patterns operated by piano keys on top of the machines.

These were supplemented by a set of 25 extra Type A pattern cams that were supplied with each machine. These could be easily fitted onto a holder at the front of the machine. By combining the use of the piano keys with the external cams, even more patterns can be produced.

Singer 320K

Model 319K - Top



The drive to the shaft operating the hook assembly and the feed dogs is transferred down the main column by the same stapled fabric timing belt previously used in the model 306 machines.

Singer 319K

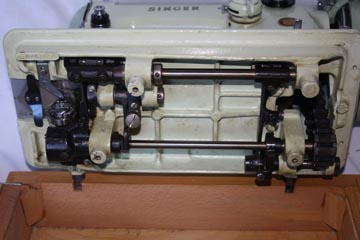

Model 319K Underbed



The wooden bed of the 320K free arm machines can be removed in 2 sections. Each section is held on by spring loaded latches which can be released by a button mounted on the bed.

Singer 320K

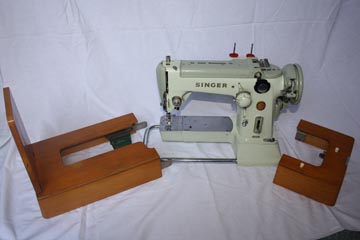

Model 320K Removeable Bed





Technical Details

Size Full size (14-5/8" base)
Motor Singer BAK-60 (external with V belt)
Drive Belt Simanco Part No. 196386
Speed Control Bakelite Style B1 foot controller with Style 1A Connector
Needle 206x13 (flat to back), 306x3 twin
Needle Threading Front to back
Bobbin Metal 20U
Finish Pale Green
